Spray Nozzle Series / Thread Mount Type

Spindle Clamping Accessories

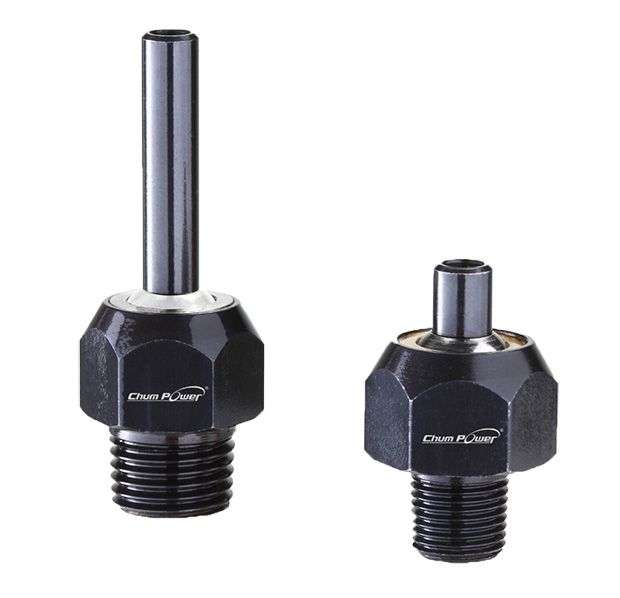

Spray Nozzle Series / Thread Mount Type

The Coolant Spray Nozzle could easily adjust its direction and spray precisely.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA90102020001A
Thread Mount: PT 1/8
L: 20
L1: 10
L2: 9
D1: 6
D2: 5
d: 4
H: 17
BA90102020002A
Thread Mount: PT 1/8
L: 40
L1: 10
L2: 29
D1: 6
D2: 5
d: 4
H: 17
BA90102020003A
Thread Mount: PT 1/8
L: 60
L1: 10
L2: 49
D1: 6
D2: 5
d: 4
H: 17
BA90102020004A
Thread Mount: PT 1/4
L: 20
L1: 10
L2: 9
D1: 6
D2: 5
d: 4
H: 17
BA90102020005A
Thread Mount: PT 1/4
L: 40
L1: 10
L2: 29
D1: 6
D2: 5
d: 4
H: 17
BA90102020006A
Thread Mount: PT 1/4
L: 60
L1: 10
L2: 49
D1: 6
D2: 5
d: 4
H: 17
BA90102020007A
Thread Mount: PT 3/8
L: 30
L1: 13
L2: 13.6
D1: 8
D2: 10
d: 6
H: 24
BA90102020008A
Thread Mount: PT 3/8
L: 50
L1: 13
L2: 33.9
D1: 8
D2: 10
d: 6
H: 24
BA90102020009A
Thread Mount: PT 3/8
L: 70
L1: 13
L2: 45.9
D1: 8
D2: 10
d: 6
H: 24
BA90102020010A
Thread Mount: PT 1/2
L: 40
L1: 18
L2: 16.5
D1: 10
D2: 12
d: 8
H: 32
BA90102020011A
Thread Mount: PT 1/2
L: 60
L1: 18
L2: 36.5
D1: 10
D2: 12
d: 8
H: 32
BA90102020012A
Thread Mount: PT 1/2
L: 80
L1: 18
L2: 56.5
D1: 10
D2: 12
d: 8
H: 32
BA90102020013A
Thread Mount: M10*1.25P
L: 20
L1: 8
L2: 9
D1: 6
D2: 5
d: 4
H: 17
BA90102020014A
Thread Mount: M10*1.25P
L: 40
L1: 8
L2: 29
D1: 6
D2: 5
d: 4
H: 17
BA90102020015A
Thread Mount: M10*1.25P
L: 60
L1: 8
L2: 49
D1: 6
D2: 5
d: 4
H: 17
BA90102020016A
Thread Mount: M20*1.5P
L: 30
L1: 13
L2: 13.6
D1: 8
D2: 10
d: 6
H: 24
BA90102020017A
Thread Mount: M20*1.5P
L: 50
L1: 13
L2: 33.9
D1: 8
D2: 10
d: 6
H: 24
BA90102020018A
Thread Mount: M20*1.5P
L: 70
L1: 13
L2: 45.9
D1: 8
D2: 10
d: 6
H: 24
BA90102020019A
Thread Mount: M24*2.0P
L: 40
L1: 18
L2: 16.5
D1: 10
D2: 12
d: 8
H: 31
BA90102020020A
Thread Mount: M24*2.0P
L: 60
L1: 18
L2: 36.5
D1: 10
D2: 12
d: 8
H: 31
BA90102020021A
Thread Mount: M24*2.0P
L: 80
L1: 18
L2: 56.5
D1: 10
D2: 12
d: 8
H: 31
BA90102020022A
Thread Mount: NPT 1/4
L: 20
L1: 10
L2: 9
D1: 6
D2: 5
d: 4
H: 17
BA90102020023A
Thread Mount: NPT 1/4
L: 40
L1: 10
L2: 29
D1: 6
D2: 5
d: 4
H: 17
BA90102020024A
Thread Mount: NPT 1/4
L: 60
L1: 10
L2: 49
D1: 6
D2: 5
d: 4
H: 17
BA90102020025A
Thread Mount: NPT 3/8
L: 30
L1: 13
L2: 13.6
D1: 8
D2: 10
d: 4
H: 24
BA90102020026A
Thread Mount: NPT 3/8
L: 50
L1: 13
L2: 33.9
D1: 8
D2: 10
d: 4
H: 24
BA90102020027A
Thread Mount: NPT 3/8
L: 70
L1: 13
L2: 45.9
D1: 8
D2: 10
d: 4
H: 24
