Shaft Coupling
Spindle Clamping Accessories

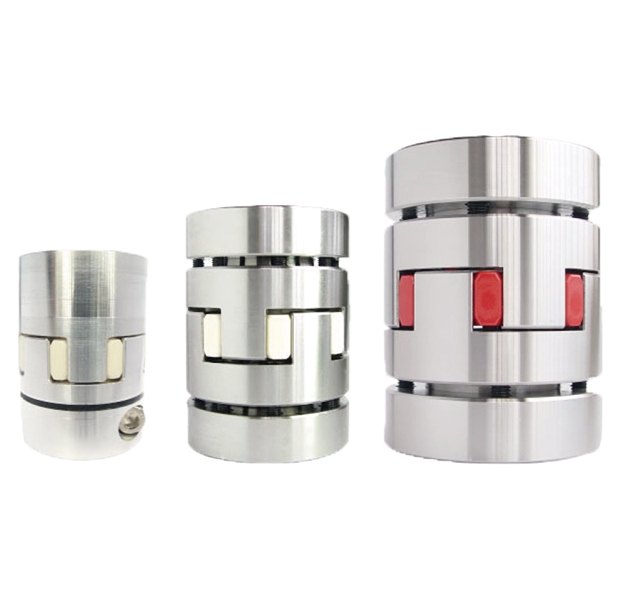

Shaft Coupling
According to DIN 69002, which is suitable for multiple spindle drives.
Developed for stub spindles.
Integrated clamping system.
Designed for main spindle drives with high speeds.
Suitable for peripheral speeds of 50 m/s and more.
Backlash - free and high precisely shaft coupling
Easy assembly by clamping and simply screws inside.
Developed for stub spindles.
Integrated clamping system.
Designed for main spindle drives with high speeds.
Suitable for peripheral speeds of 50 m/s and more.
Backlash - free and high precisely shaft coupling
Easy assembly by clamping and simply screws inside.
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTSAA000101A
Size:14Pd:14"
D:32
dH:10.5
L:50
l1:l2:18.5
E:13
b:10
s:1.5
a:2
d1:17
d2:17
d3:8.5
BTSAA000102A
Size:19P37.5d:16"
D:37.5
dH:18
L:66
l1:l2:25
E:16
b:12
s:2
a:3
d1:20
d2:19
d3:9.5
BTSAA000103A
Size:19Pd:19"
D:40
dH:18
L:66
l1:l2:25
E:16
b:12
s:2
a:3
d1:23
d2:22
d3:9.5
BTSAA000104A
Size:24P50d:24"
D:50
dH:27
L:78
l1:l2:30
E:18
b:14
s:2
a:3
d1:28
d2:29
d3:12.5
BTSAA000105A
Size:24Pd:25"
D:55
Dh:27
L:78
l1:l2:30
E:18
b:14
s:2
a:3
d1:30
d2:30
d3:12.5
BTSAA000106A
Size:28Pd:35"
D:65
dH:30
L:90
l1:l2:35
E:20
b:15
s:2.5
a:4
d1:40
d2:40
d3:14.5
BTSAA000107A
Size:38Pd:40"
D:80
dH:38
L:114
l1:l2:45
E:24
b:18
s:3
a:4
d1:46
d2:46
d3:16.5
BTSAA000108A
Size:42Pd:42"
D:95
dH:46
L:126
l1:l2:50
E:26
b:20
s:3
a:4
d1:52
d2:55
d3:18.5
BTSAA000109A
Size:48Pd:45"
D:105
dH:51
L:140
l1:l2:56
E:28
b:21
s:3.5
a:4
d1:52
d2:60
d3:20.5
BTSAA000110A
Size:55Pd:50"
D:120
dH:60
L:160
l1:l2:65
E:30
b:22
s:4
a:4.5
d1:55
d2:72
d3:22.5
