Spray Nozzle Series / Press Fit Type
Spindle Clamping Accessories
Spray Nozzle Series / Press Fit Type

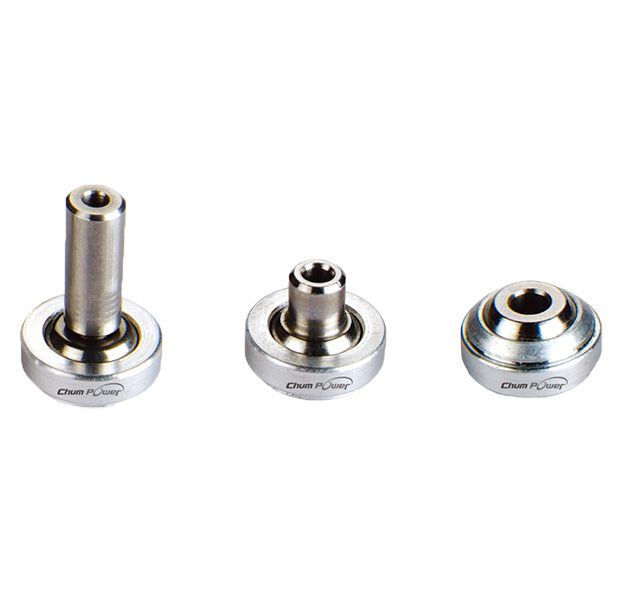

The Coolant Spray Nozzle could easily adjust its direction and spray precisely.
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA90101010001A
Nominal Dimensions (mm):D: 15
H: 15
D1: -
D2: -
D3: -
L: 8
L1: -
d: -
d1: Ø4
d2: -
Ball dia A: 7/16"
Allowable Tilting Angle Degree ±α°: 29°
FlG: 1、5
BA90101020001A
Nominal Dimensions (mm):D: 15
H: 15
D1: Ø6
D2: -
D3: -
L: 14
L1: -
d: Ø3
d1: -
d2: -
Ball dia A: 7/16"
Allowable Tilting Angle Degree ±α°: 23°
FlG: 2、4
BA90101020002A
Nominal Dimensions (mm):D: 15
H: 15
D1: -
D2: M5xP0.8
D3: Ø6
L: 8
L1: 23
d: -
d1: M5xP0.8
d2: 2.5
Ball dia A: 7/16"
Allowable Tilting Angle Degree ±α°: 23°
FlG: 3、5、6
BA90101010002A
Nominal Dimensions (mm):D: 12
H: 12
D1: -
D2: -
D3: -
L: 7
L1: -
d: -
d1: M5xP0.8
d2: -
Ball dia A: 9mm
Allowable Tilting Angle Degree ±α°: 23°
FlG: 1、5
BA90101020003A
Nominal Dimensions (mm):D: 15
H: 15
D1: -
D2: M5xP0.8
D3: Ø6
L: 8
L1: 19
d: -
d1: M5xP0.8
d2: 2.5
Ball dia A: 7/16"
Allowable Tilting Angle Degree ±α°: 23°
FlG: 3、5、6
BA90101010003A
Nominal Dimensions (mm):D: 10
H: 10
D1: -
D2: -
D3: -
L: 5.5
L1: -
d: -
d1: M4xP0.7
d2: -
Ball dia A: 7mm
Allowable Tilting Angle Degree ±α°: 23°
FlG: 1、5
BA90101020004A
Nominal Dimensions (mm):D: 10
H: 10
D1: -
D2: -
D3: Ø4.5
L: 5.5
L1: 17.5
d: -
d1: M4xP0.7
d2: 2.3
Ball dia A: 7mm
Allowable Tilting Angle Degree ±α°: 23°
FlG: 3、5、6
