Hex Key Drill Chuck Arbor Type
Hex Key Tooling System

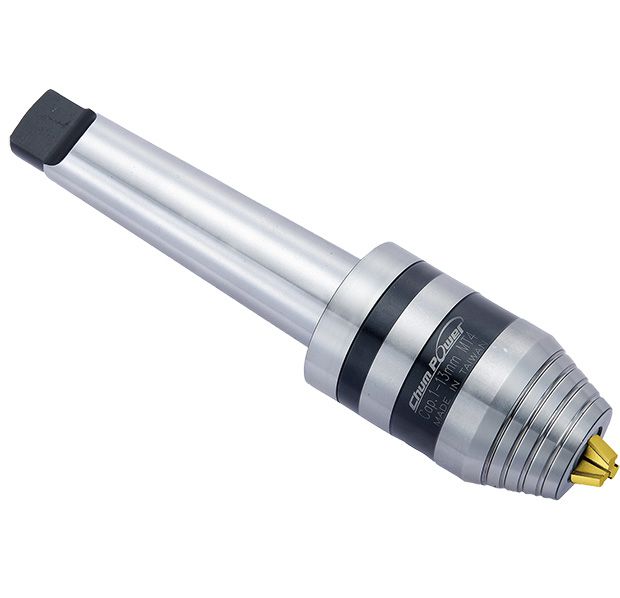

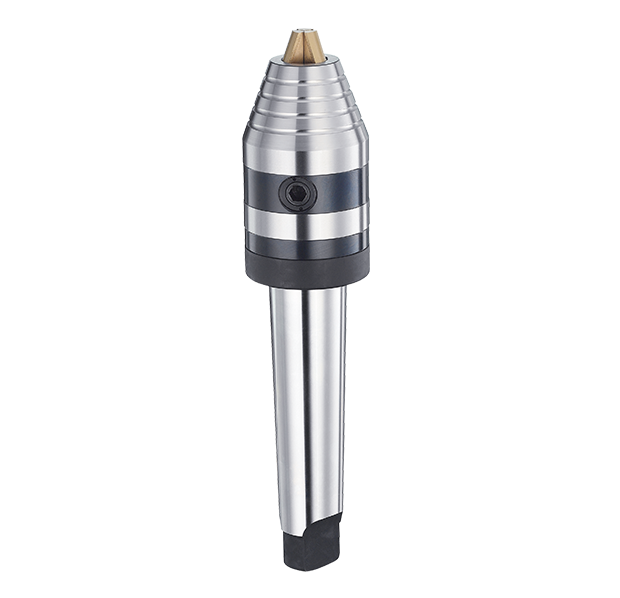

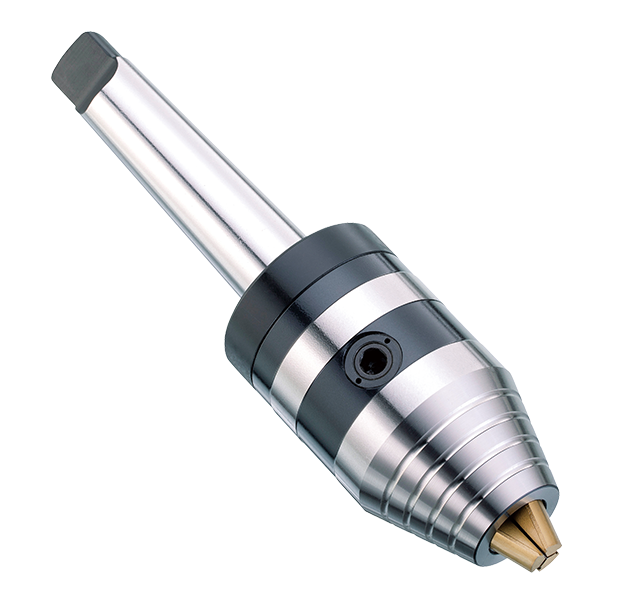

Hex Key Drill Chuck Arbor Type
Arbor structure males its performance perfect for drilling press and machine center.
Fine components ensure the tolerance and accuracy well.
The benefit of titanium jaws is to increase the intensity and wear-resistance.
*Custom-Built products are available on request.
Fine components ensure the tolerance and accuracy well.
The benefit of titanium jaws is to increase the intensity and wear-resistance.
*Custom-Built products are available on request.
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA2MT02223201A
Type:MT3ᵡGHK13S-88Capacity (mm):0.3-13
Capacity (inch):1/64-1/2
L:88
ØD:50
Spanner No:BESTC0006
Weight:1330
BA2MT02224201A
Type:MT3ᵡGHK16S-93Capacity (mm):1.5-16
Capacity (inch):1/16-5/8
L:93
ØD:50
Spanner No:BESTC0006
Weight:1390
BA2MT03223201A
Type:MT4ᵡGHK13S-88Capacity (mm):0.3-13
Capacity (inch):1/64-1/2
L:88
ØD:50
Spanner No:BESTC0006
Weight:1380
BA2MT03224201A
Type:MT4ᵡGHK16S-93Capacity (mm):1.5-16
Capacity (inch):1/16-5/8
L:93
ØD:50
Spanner No:BESTC0006
Weight:1360
BA2MT04223201A
Type:MT4ᵡGHK16S-89Capacity (mm):0.3-13
Capacity (inch):1/64-1/2
L:89
ØD:50
Spanner No:BESTC0006
Weight:1600
BA2MT04224201A
Type:MT4ᵡGHK16S-94Capacity (mm):1.5-16
Capacity (inch):1/16-5/8
L:94
ØD:50
Spanner No:BESTC0006
Weight:1830
