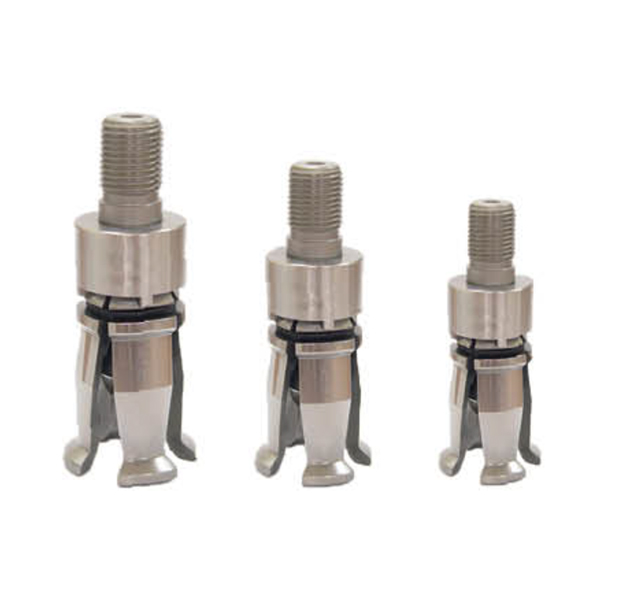

Force Multiplication Pull Stud-type Clamping Units

Spindle Clamping

Force Multiplication Pull Stud-type Clamping Units

Getting better dynamic characteristics by changing the numbers of washer and the length of spring.
The stress of spindle is smaller at pulling operation.
Due to anti-lock mechanism, bearing loading is reduced.
Tool-changing speed is raised.
Pulling force is increased and put-in force is lessened in the limited space.
Lessening the length of pulling system and spindle, which results in the life circle of pulling system prolonged.
Coating treatment: wear-resistance and anti-corrosion.
It has been tested by 1.2 million times of performance test.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTFMS902501A
Type: BT30-45°
a: 20
b: 22
c: 24
d: 16
e: 10
f: M10*P1.5
g: 102
h: 56.5
i: 13.65
j: 17.5
k: 80±0.027
l: 4
m: 100
n: 3
p: 96
hs: 4.5
u: 130
BTFMS902502A
Type: BT40-45°
a: 29
b: 34
c: 36
d: 28
e: 16
f: M16*P1.5
g: 145
h: 78.4
i: 20.5
j: 25.5
k: 115±0.027
l: 10
m: 143
n: 5
p: 145.5
hs: 6
u: 175
BTFMS902503A
Type: BT50-45°
a: 44
b: 50
c: 54
d: 38
e: 22
f: M22*P1.5
g: 214
h: 117.75
i: 27.5
j: 35
k: 176.75±0.032
l: 16
m: 209
n: 6
p: 224.5
hs: 9
u: 251
BTFMS902504A
Type:CAT40
a: 29
b: 34
c: 36
d: 28
e: 16
f: M16*P1.5
g: 145
h: 78.4
i: 20.5
j: 25.5
k: 115±0.027
l: 10
m: 143
n: 5
p: 145.5
hs: 6
u: 175
BTFMS902505A
Type:DIN40
a: 29
b: 34
c: 36
d: 28
e: 16
f: M16*P1.5
g: 145
h: 78.4
i: 20.5
j: 25.5
k: 115±0.027
l: 10
m: 143
n: 5
p: 145.5
hs: 6
u: 175
BTFMS902506A
Type:DIN50
a: 44
b: 50
c: 54
d: 38
e: 22
f: M22*P1.5
g: 214
h: 117.75
i: 27.5
j: 35
k: 176.75±0.032
l: 16
m: 209
n: 6
p: 224.5
hs: 9
u: 251
