CPM Type Aluminum Angle Head

Aluminum Angle Head

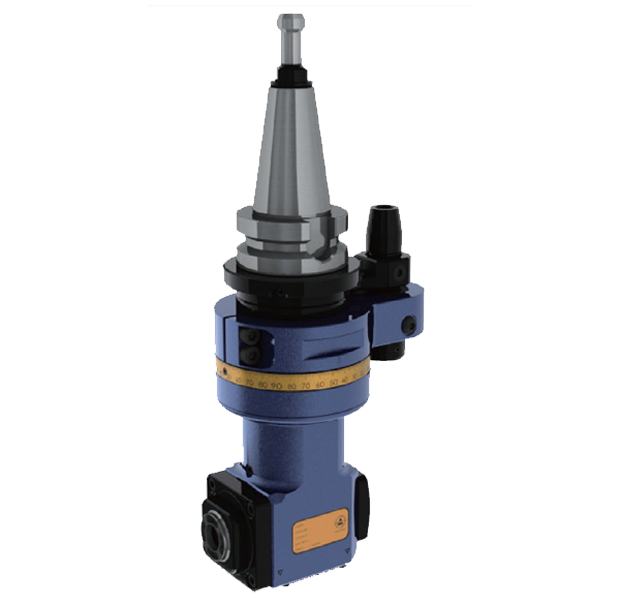

CPM Type Aluminum Angle Head

  • 6000 rpm high speed processing. Increases machining e ciency.
  • Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.
  • Can be automatic tool changed. Increases productivity.
  • Cutting Direction can be adjusted from 0~360 degrees.

Run-out 0.002 mm
Material Aerospace Aluminum Alloy
R.P.M. Max. 6000 RPM
Torque Max. 15 Nm
Gear Ratio 1:1
Spindle Type BT, SK(ISO), CAT
Standard Accessory Open End Wrench, ER Wrench, ER Nut
Output Rotation Reverse to Input Rotation

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPM1900010
(Unit/mm)
Type:BT30-A04.180G
A:180、B:31.2、C:90
D:84.5、E:26.5、F:43
G:43.5、H:42、I:60
J:1-16[ER25]
K:65、L:25、M:120
N.W.(KG):4.5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900020
(Unit/mm)
Type:BT40-A04.180G
A:180、B:31.2、C:90
D:84.5、E:26.5、F:43
G:43.5、H:42、I:60
J:1-16[ER25]
K:65、L:25、M:120
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900030
(Unit/mm)
Type:SK30-A04.180G
A:180、B:31.2、C:90
D:84.5、E:26.5、F:43
G:43.5、H:42、I:60
J:1-16[ER25]
K:65、L:25、M:120
N.W.(KG):4.5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900040
(Unit/mm)
Type:SK40-A04.180G
A:180、B:31.2、C:90
D:84.5、E:26.5、F:43
G:43.5、H:42、I:60
J:1-16[ER25]
K:65、L:25、M:120
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900060
(Unit/mm)
Type:CAT40-A04.180G
A:180、B:31.2、C:90
D:84.5、E:26.5、F:43
G:43.5、H:42、I:60
J:1-16[ER25]
K:65、L:25、M:120
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900070
(Unit/mm)
Type:BT30-A10.180G
A:180、B:31.2、C:90
D:84.5、E:12、F:43
G:43.5、H:42、I:60
J:1-13[ER20 I.N.]
K:65、L:25、M:105
N.W.(KG):4.5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900080
(Unit/mm)
Type:BT40-A10.180G
A:180、B:31.2、C:90
D:84.5、E:12、F:43
G:43.5、H:42、I:60
J:1-13[ER20 I.N.]
K:65、L:25、M:105
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900090
(Unit/mm)
Type:SK30-A10.180G
A:180、B:31.2、C:90
D:84.5、E:12、F:43
G:43.5、H:42、I:60
J:1-13[ER20 I.N.]
K:65、L:25、M:105
N.W.(KG):4.5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900100
(Unit/mm)
Type:SK40-A10.180G
A:180、B:31.2、C:90
D:84.5、E:12、F:43
G:43.5、H:42、I:60
J:1-13[ER20 I.N.]
K:65、L:25、M:105
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
BTCPM1900120
(Unit/mm)
Type:CAT40-A10.180G
A:180、B:31.2、C:90
D:84.5、E:12、F:43
G:43.5、H:42、I:60
J:1-13[ER20 I.N.]
K:65、L:25、M:105
N.W.(KG):5
(Unit/mm)
*I.N.:內牙 Internal Nut
