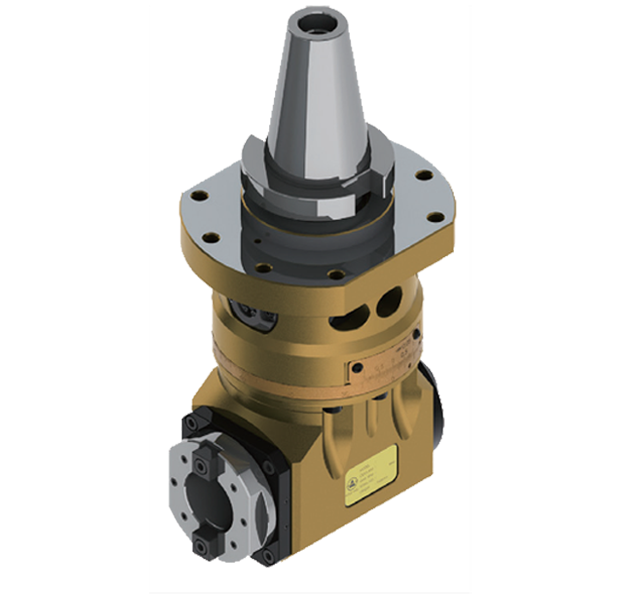

CPK Type Multi-block Angle Head(VTC)
Multi-block Angle Head
CPK Type Multi-block Angle Head(VTC)
- Can be applied on Vertical Turning Center, Plano Milling Machine and various machines with Adapter Plate.
- Built-in spindle positioning system. The exible design of connection part which is suitable for various magazines makes the ATC application possible.
- Can be connected to tooth-shaped Flange Disc or any shape of Machine Spindle surface to reach Max. rigidity.
- Hardened precision spiral bevel gears ensure stable performance with long service life.
- Cutting direction can be adjusted from 0-360 degree.
| Run-out | 0.002 mm |
|---|---|
| Material | Alloy Steel |
| R.P.M. | Max. 4000 RPM |
| Torque | Max. 60 Nm |
| Gear Ratio | 1:1 |
| Spindle Type | BT, SK(ISO), CAT |
| Standard Accessory | Open End Wrench, L Type Wrench |
| Output Rotation | Reverse to Input Rotation |
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPK1200010
(Unit/mm)Type：BT50-C1
A：185、B：46、C：180
D：100、E：193、F：100
G：205、H：88
I：BT40
N.W.(KG)：25.7
(Unit/mm)
BTCPK1200020
(Unit/mm)Type：SK50-C1
A：185、B：46、C：180
D：100、E：193、F：100
G：205、H：88
I：BT40
N.W.(KG)：25.7
(Unit/mm)
BTCPK1200030
(Unit/mm)Type：CAT50-C1
A：185、B：46、C：180
D：100、E：193、F：100
G：205、H：88
I：BT40
N.W.(KG)：25.7
(Unit/mm)
