CPK Type Multi-block Angle Head-BT

Multi-block Angle Head

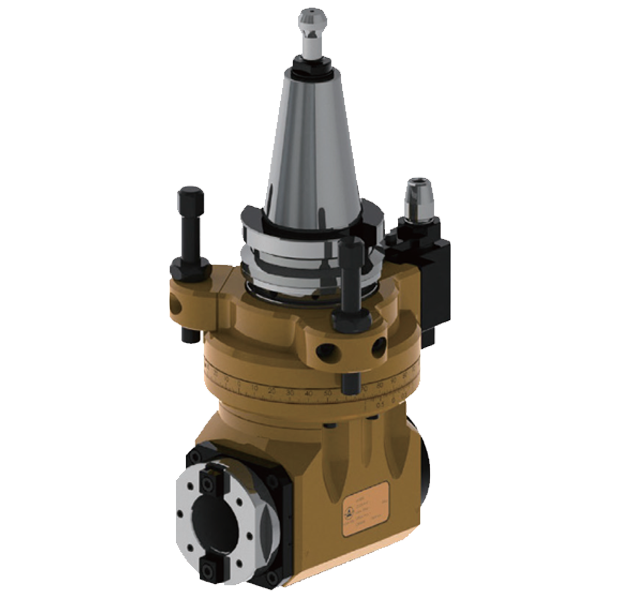

CPK Type Multi-block Angle Head-BT

  • The output interface of BT40 ensures wide- range application with various BT40 tool holder.
  • Hardened precision spiral bevel gears ensure stable performance with long service.
  • Cutting direction can be adjusted from 0~360 degree.
  • Multi-block support system improves working rigidity and stability.
  • The automatic disengagement and engagement of Angle Head can be easily operated on the base of table and improve efficiency.
  • Rugged Alloy Steel body construction with compact design.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPK0600010
(Unit/mm)
Type:BT50-B1
A:202.5、B:46、C:150
D:148、E:100、F:100
G:193、H:88
I:239、J:BT40
K:18、L:110
N.W.(KG):22.5
(Unit/mm)
BTCPK0600020
(Unit/mm)
Type:SK50-B1
A:202.5、B:46、C:150
D:148、E:100、F:100
G:193、H:88
I:239、J:BT40
K:18、L:110
N.W.(KG):22.5
(Unit/mm)
BTCPK0600030
(Unit/mm)
Type:CAT50-B1
A:202.5、B:46、C:150
D:148、E:100、F:100
G:193、H:88
I:239、J:BT40
K:18、L:110
N.W.(KG):22.5
(Unit/mm)
