CPK Type Heavy Duty Angle Head

Heavy Duty Angle Head

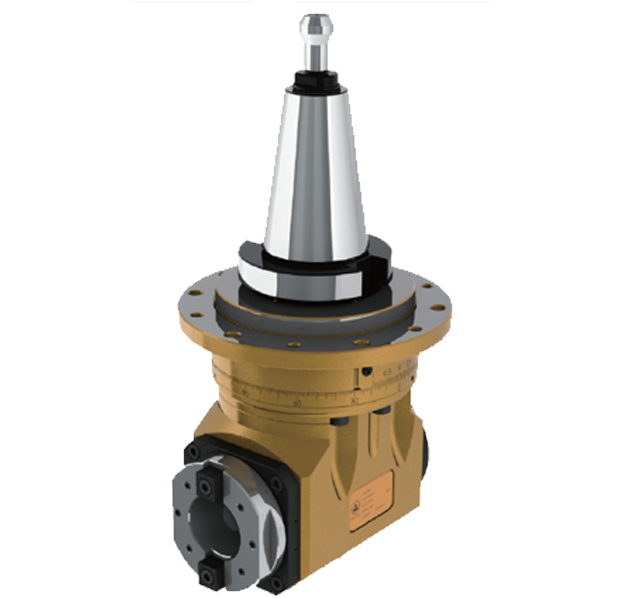

CPK Type Heavy Duty Angle Head

  • The output interface of BT40 ensures wide- range application with various BT40 tool holders.
  • Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.
  • Interchangeable among same taper machines by changing the mounting plate.
  • Hardened precision spiral bevel gears ensure stable performance with long service life.
  • Cutting direction can be adjusted from 0 ~ 360 degree.

Run-out 0.002 mm
Material Ductile Cast Iron
R.P.M. Max. 4000 RPM
Torque Max. 100 Nm
Gear Ratio 1:1
Spindle Type BT, SK(ISO), CAT
Standard Accessory Open End Wrench, L Type Wrench
Output Rotation Reverse to Input Rotation

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPD08000010
(Unit/mm)
Type:BT40-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):17.3
(Unit/mm)
BTCPD09000020
(Unit/mm)
Type:BT50-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):20
(Unit/mm)
BTCPD08000030
(Unit/mm)
Type:SK40-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):17.3
(Unit/mm)
BTCPD08000040
(Unit/mm)
Type:SK50-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):20
(Unit/mm)
BTCPD08000050
(Unit/mm)
Type:CAT40-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):17.3
(Unit/mm)
BTCPD08000060
(Unit/mm)
Type:CAT50-A1G
A:164、B:46、C:138
D:126、E:100、F:100
G:193、H:88
I:180、J:BT40
N.W.(KG):20
(Unit/mm)
