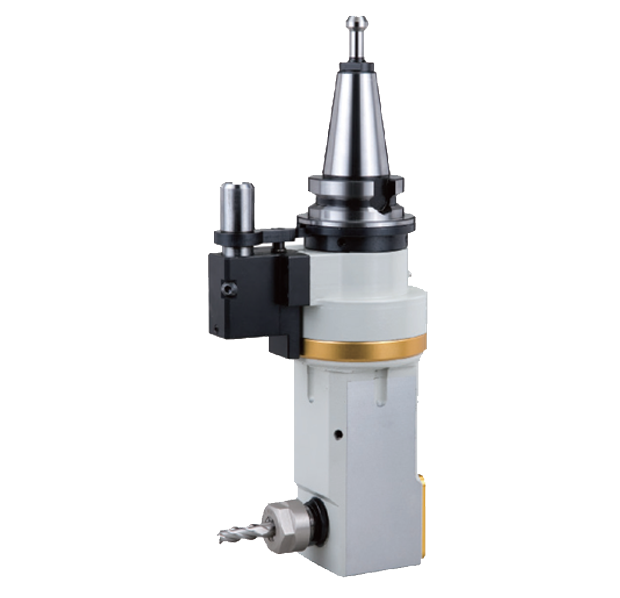

CPD Type Modular Angle Head-Longer

Angle Head

CPD Type Modular Angle Head-Longer

  • The body is made of Ductile Cast Iron. High strength steel; stable machining.
  • The AHC series is suitable for firm and fast face milling.
  • Can be automatic tool changed. Increases productivity.
* For longer length, Extension is available, whose speci cation is shown on here
Run-out 0.002 mm
Material Ductile Cast Iron
R.P.M. Max. 4000 RPM
Torque Max. 15 Nm
Gear Ratio 1:1
Spindle Type BT, SK(ISO), CAT
Standard Accessory Hook Spanner, ER Wrench, ER Nut
Output Rotation Reverse to Input Rotation

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPD0400010
(Unit/mm)
Type:BT40-A1
A:227、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:65/80/85、M:116
(Unit/mm)
N.W.(KG):8.4
BTCPD0400020
(Unit/mm)
Type:BT50-A1
A:238、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:80/85/110、M:116
(Unit/mm)
N.W.(KG):11
BTCPD0400030
(Unit/mm)
Type:SK40-A1
A:227、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:65/80/85、M:116
(Unit/mm)
N.W.(KG):8.1
BTCPD0400040
(Unit/mm)
Type:SK50-A1
A:238、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:80/85/110、M:116
(Unit/mm)
N.W.(KG):10.8
BTCPD0400050
(Unit/mm)
Type:CAT40-A1
A:227、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:65/80/85、M:116
(Unit/mm)
N.W.(KG):8.1
BTCPD0400060
(Unit/mm)
Type:CAT50-A1
A:238、B:29、C:95
D:156、E max:38、F:38
G:28、H:34
I:66、J:1-13(ER20)、K:15.5
L:80/85/110、M:116
(Unit/mm)
N.W.(KG):10.8
BTCPD0400070
(Unit/mm)
Type:BT40-A3
A:227、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:65/80/85、M:125
(Unit/mm)
N.W.(KG):8.4
BTCPD0400080
(Unit/mm)
Type:BT50-A3
A:238、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:80/85/110、M:125
(Unit/mm)
N.W.(KG):11
BTCPD0400090
(Unit/mm)
Type:SK40-A3
A:227、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:65/80/85、M:125
(Unit/mm)
N.W.(KG):8.1
BTCPD0400100
(Unit/mm)
Type:SK50-A3
A:238、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:80/85/110、M:125
(Unit/mm)
N.W.(KG):10.8
BTCPD0400110
(Unit/mm)
Type:CAT40-A3
A:227、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:65/80/85、M:125
(Unit/mm)
N.W.(KG):8.1
BTCPD0400120
(Unit/mm)
Type:CAT50-A3
A:238、B:29、C:95
D:156、E max:47、F:38
G:28、H:42
I:66、J:2-16(ER25)、K:15.5
L:80/85/110、M:125
(Unit/mm)
N.W.(KG):10.8
