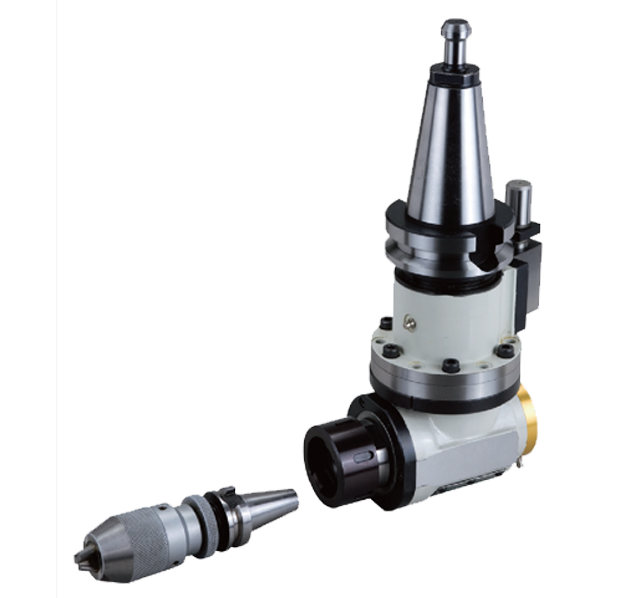

CPB Type 90° Angle Head-BT
90° Angle Head
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTCPB0300010
(Unit/mm)Type:BT40-BT30
A:192、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:70/80/85 (Unit/mm)
N.W.(KG):12.1
BTCPB0300020
(Unit/mm)Type:BT50-BT30
A:195、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:80/85/110 (Unit/mm)
N.W.(KG):14.7
BTCPB0300030
(Unit/mm)Type:SK40-BT30
A:192、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:70/80/85 (Unit/mm)
N.W.(KG):12.1
BTCPB0300040
(Unit/mm)Type:SK50-BT30
A:195、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:80/85/110 (Unit/mm)
N.W.(KG):14.7
BTCPB0300050
(Unit/mm)Type:CAT40-BT30
A:192、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:70/80/85 (Unit/mm)
N.W.(KG):12.1
BTCPB0300060
(Unit/mm)Type:CAT50-BT30
A:195、B:44.5、C:120
D:127.5、E:45、F:70
G:65、H:66
I:90、K:17
L:80/85/110 (Unit/mm)
N.W.(KG):14.7
