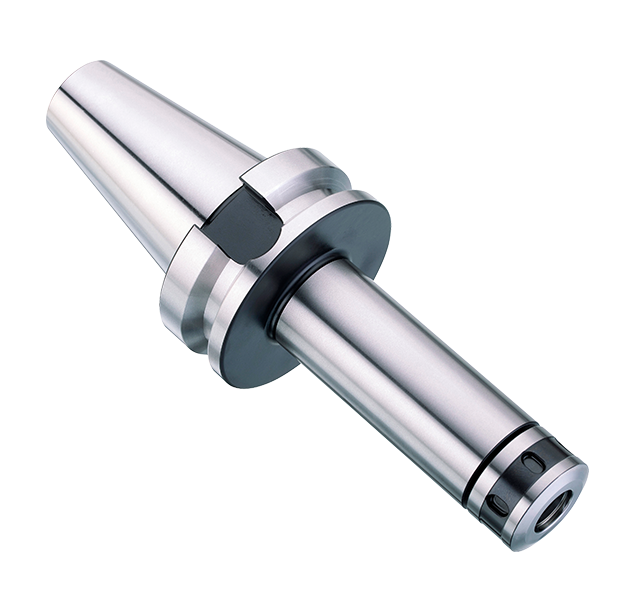

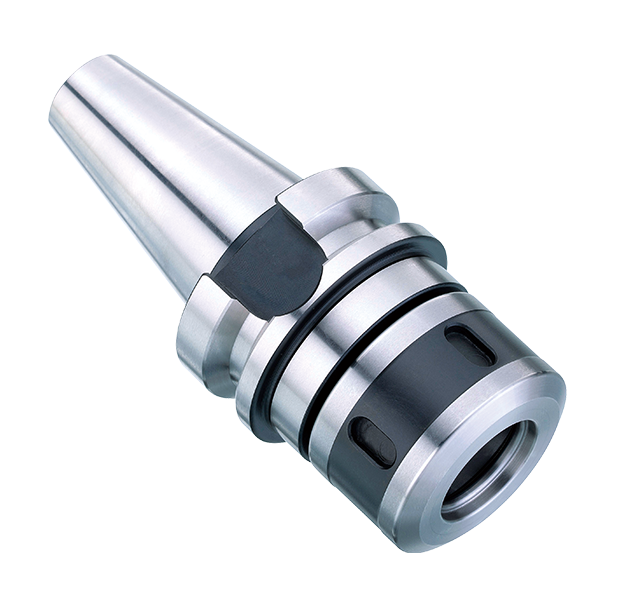

BT Chuck for High-speed CNC Machining

BT Tooling System

BT Chuck for High-speed CNC Machining

To prevent vibration and reduces noise by SK Nut(Notch-Free).

High Rigidity.

High Accuracy.

High Clamping Force.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA2BT30251060B
Type: BT30-SK 6-60
L: 60
L1: 38
øC: 19.7
G: M8
Collect: SK6
BA2BT30251090B
Type: BT30-SK 6-90
L: 90
L1: 68
øC: 19.7
G: M8
Collect: SK6
BA2BT30252060B
Type: BT30-SK 10-60
L: 60
L1: 38
øC: 29
G: M12
Collect: SK10
BA2BT30252090B
Type: BT30-SK 10-90
L: 90
L1: 68
øC: 29
G: M12
Collect: SK10
BA2BT30254060B
Type: BT30-SK 16-60
L: 60
L1: 38
øC: 40
G: M18
Collect: SK16
BA2BT30254090B
Type: BT30-SK 16-90
L: 90
L1: 68
øC: 40
G: M18
Collect: SK16
BA2BT30255060B
Type: BT30-SK 20-60
L: 60
L1: 38
øC: 48.5
G: M22
Collect: SK20
BA2BT30256060B
Type: BT30-SK 25-90
L: 90
L1: 68
øC: 55
G: M28
Collect: SK25
BA2BT40251060B
Type: BT40-SK 6-60
L: 60
L1: 33
øC: 19.7
G: M8
Collect: SK6
BA2BT40251090B
Type: BT40-SK 6-90
L: 90
L1: 63
øC: 19.7
G: M8
Collect: SK6
BA2BT40251120B
Type: BT40-SK 6-120
L: 120
L1: 93
øC: 19.7
G: M8
Collect: SK6
BA2BT40252060B
Type: BT40-SK 10-60
L: 60
L1: 33
øC: 29
G: M12
Collect: SK10
BA2BT40252090B
Type: BT40-SK 10-90
L: 90
L1: 63
øC: 29
G: M12
Collect: SK10
BA2BT40252120B
Type: BT40-SK 10-120
L: 120
L1: 93
øC: 29
G: M12
Collect: SK10
BA2BT40252150B
Type: BT40-SK 10-150
L: 150
L1:123
øC: 29
G: M12
Collect: SK10
BA2BT40254060B
Type: BT40-SK 16-60
L: 60
L1: 33
øC: 40
G: M18
Collect: SK16
BA2BT40254090B
Type: BT40-SK 16-90
L: 90
L1: 63
øC: 40
G: M18
Collect: SK16
BA2BT40254105B
Type: BT40-SK 16-105
L: 105
L1: 78
øC: 40
G: M18
Collect: SK16
BA2BT40254120B
Type: BT40-SK 16-120
L: 120
L1: 93
øC: 40
G: M18
Collect: SK16
BA2BT40254135B
Type: BT40-SK 16-135
L: 135
L1: 108
øC: 40
G: M18
Collect: SK16
BA2BT40254150B
Type: BT40-SK 16-150
L: 150
L1: 123
øC: 40
G: M18
Collect: SK16
BA2BT40254190B
Type: BT40-SK 16-190
L: 190
L1: 163
øC: 40
G: M18
Collect: SK16
BA2BT40255060B
Type: BT40-SK 20-60
L: 60
L1: 33
øC: 48.5
G: M22
Collect: SK20
BA2BT40255090B
Type: BT40-SK 20-90
L: 90
L1: 63
øC: 48.5
G: M22
Collect: SK20
BA2BT40255120B
Type: BT40-SK 20-120
L: 120
L1: 93
øC: 48.5
G: M22
Collect: SK20
BA2BT40255150B
Type: BT40-SK 20-150
L: 150
L1: 123
øC: 48.5
G: M22
Collect: SK20
BA2BT40256080B
Type: BT40-SK 25-90
L: 90
L1: 63
øC: 55
G: M28
Collect: SK25
BA2BT40256120B
Type: BT40-SK 25-120
L: 120
L1: 93
øC: 55
G: M28
Collect: SK25
BA2BT50251100B
Type: BT50-SK 6-100
L: 100
L1: 62
øC: 19.7
G: M8
Collect: SK6
BA2BT50251150B
Type: BT50-SK 6-150
L: 150
L1: 112
øC: 19.7
G: M8
Collect: SK6
BA2BT50252100B
Type: BT50-SK 10-100
L: 100
L1: 62
øC: 29
G: M12
Collect: SK10
BA2BT50252150B
Type: BT50-SK 10-150
L: 150
L1: 112
øC: 29
G: M12
Collect: SK10
BA2BT50254100B
Type: BT50-SK 16-100
L: 100
L1: 62
øC: 40
G: M18
Collect: SK16
BA2BT50254150B
Type: BT50-SK 16-150
L: 150
L1: 112
øC: 40
G: M18
Collect: SK16
BA2BT50254200B
Type: BT50-SK 16-200
L: 200
L1: 62
øC: 40
G: M18
Collect: SK16
BA2BT50255100B
Type: BT50-SK 20-100
L: 100
L1: 112
øC: 48.5
G: M22
Collect: SK20
BA2BT50255150B
Type: BT50-SK 20-150
L: 150
L1: 62
øC: 48.5
G: M22
Collect: SK20
BA2BT50255200B
Type: BT50-SK 20-200
L: 200
L1: 112
øC: 48.5
G: M22
Collect: SK20
BA2BT50256100B
Type: BT50-SK 25-100
L: 100
L1: 62
øC: 55
G: M28
Collect: SK25
BA2BT50256150B
Type: BT50-SK 25-150
L: 150
L1: 112
øC: 55
G: M28
Collect: SK25
BA2BT50256200B
Type: BT50-SK 25-200
L: 200
L1: 162
øC: 55
G: M28
Collect: SK25
