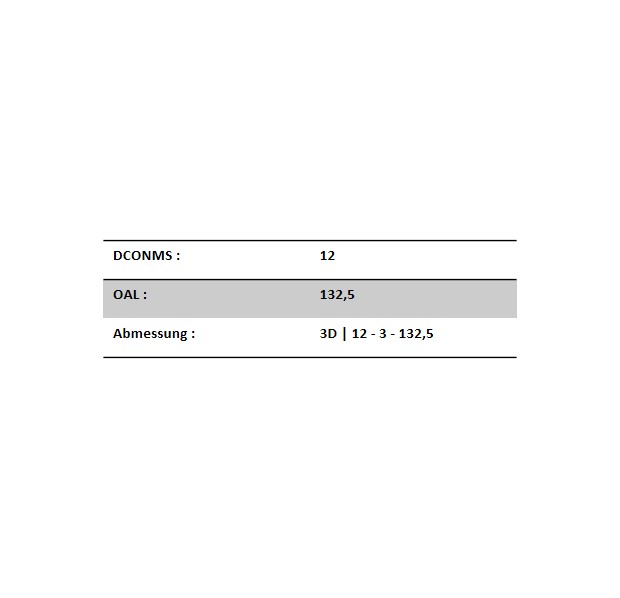

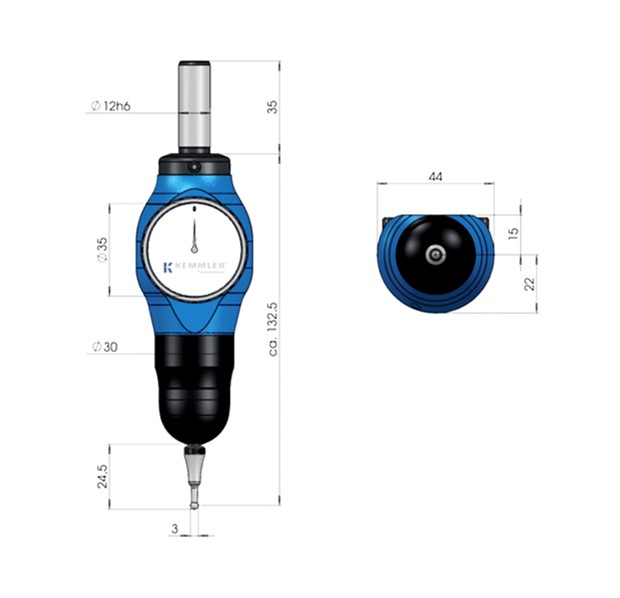

3D Tester analog DCONMS=12mm

Product information "3D push-button analog DCONMS=12mm"

Application:
Search for the neutral point and raise in 3-axis, x, y and z.

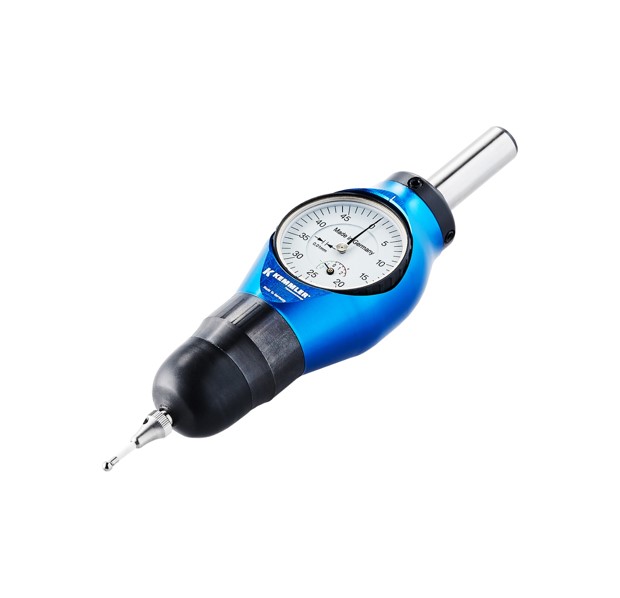

The 3D probe impresses with its slim and attractive design. Its precise and versatile application possibilities allow quick and easy determination of workpiece zero points and length dimensions.

Probing is possible in all axis directions (X/Y/Z) with the same pointer resolution.

As soon as the pointers indicate "0", the spindle axis is precisely positioned on the edge of the workpiece.

Protection of the measuring unit is paramount. To this end, large overtravel distances have been integrated into the probe unit. These are limited by mechanical end stops. The stylus has a predetermined breaking point at the very top. However, if your 3D probe is damaged by external force, it can be easily repaired at low cost.

Please note:

Not waterproof

Supplied without factory certificate

No serial number
