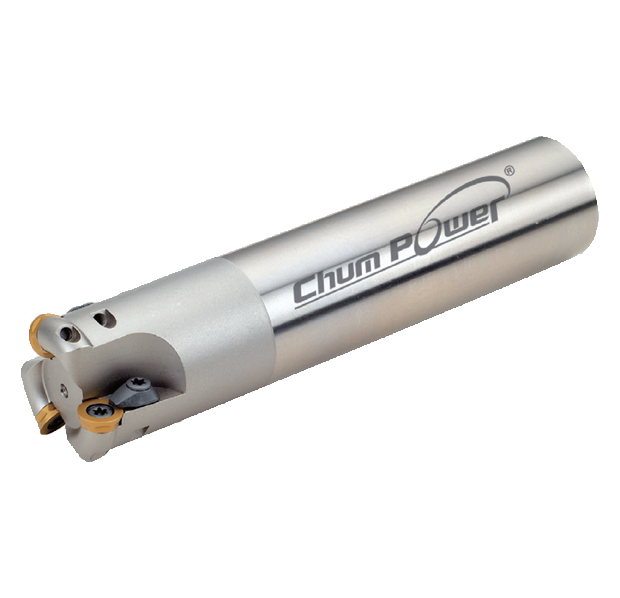

RD Radius Corner End Mill
A057 End Mill
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BTSPA2296000

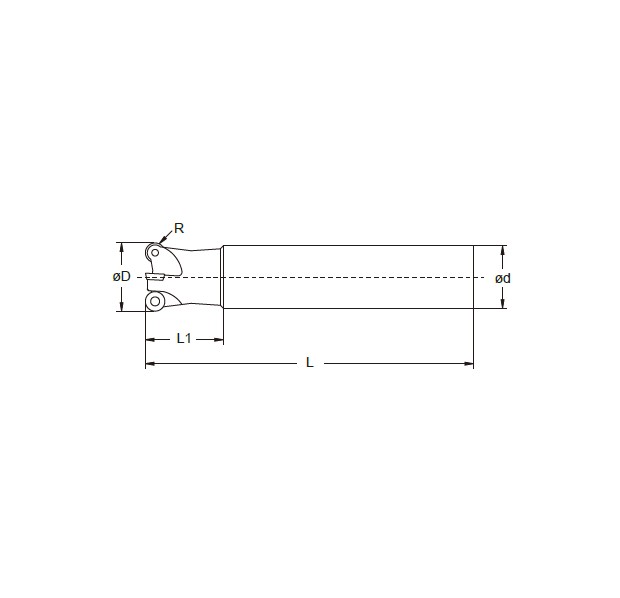

Type:RD05-1203.12×100ØD:12
Ød:12
L:100
L1:30
R:2.5
Teeth:3
Insert:RDWH0501
Screw:SCR-RD2.0
Wrenth:T6
BTSPA2298000
Type:RD05-1303.12×100ØD:13
Ød:12
L:100
L1:30
R:2.5
Teeth:3
Insert:RDWH0501
Screw:SCR-RD2.0
Wrenth:T6
BTSPA2300000
Type:RD07-1603.16×150ØD:16
Ød:16
L:150
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2302000
Type:RD07-1703.16×150ØD:17
Ød:16
L:150
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2304000
Type:RD07-1703.16×200ØD:17
Ød:16
L:200
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2306000
Type:RD07-2003.20×150ØD:20
Ød:20
L:150
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2308000
Type:RD07-2103.20×150ØD:21
Ød:20
L:150
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2310000
Type:RD07-2103.20×200ØD:21
Ød:20
L:200
L1:30
R:3.5
Teeth:3
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2312000
Type:RD07-2504.25×150ØD:25
Ød:25
L:150
L1:30
R:3.5
Teeth:4
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2314000
Type:RD07-2604.25×150ØD:26
Ød:25
L:150
L1:30
R:3.5
Teeth:4
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2316000
Type:RD07-2604.25×200ØD:26
Ød:25
L:200
L1:30
R:3.5
Teeth:4
Insert:RDWT0702
Screw:SCR-RD2.5
Wrenth:T8
BTSPA2318000
Type:RD10-35C03.32×150ØD:35
Ød:32
L:150
L1:50
R:5
Teeth:3
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
BTSPA2320000
Type:RD10-35C03.32×200ØD:35
Ød:32
L:200
L1:50
R:5
Teeth:3
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
BTSPA2322000
Type:RD10-35C03.32×250ØD:35
Ød:32
L:250
L1:50
R:5
Teeth:3
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
BTSPA2324000
Type:RD10-35C03.32×300ØD:35
Ød:32
L:300
L1:50
R:5
Teeth:3
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
BTSPA2326000
Type:RD10-35C04.32×150ØD:35
Ød:32
L:150
L1:50
R:5
Teeth:4
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
BTSPA2328000
Type:RD10-35C04.32×200ØD:35
Ød:32
L:200
L1:50
R:5
Teeth:4
Insert:RDWT1003
Screw:SCR-RD3.5
Wrenth:T15
