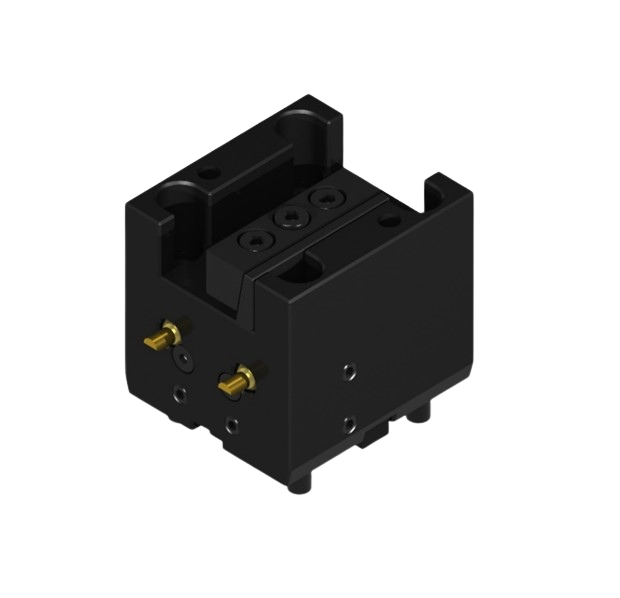

端面內徑刀座 B1& B2
端面內徑刀座 B1& B2
產品型號
(最新產品規格資訊請與業務聯繫)

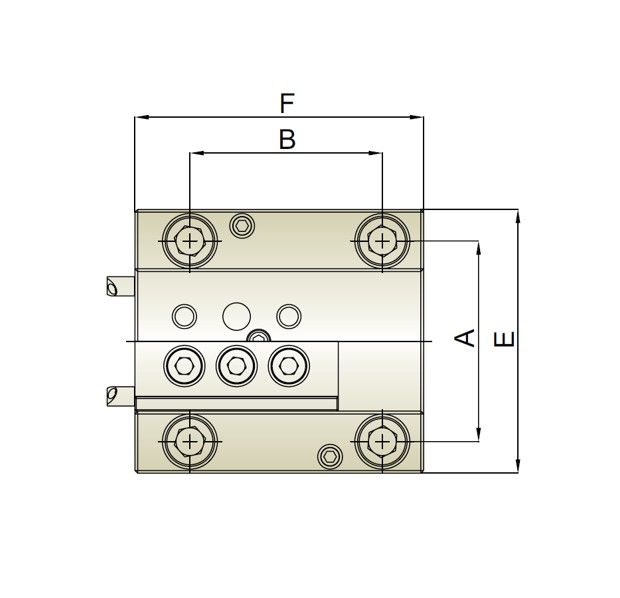

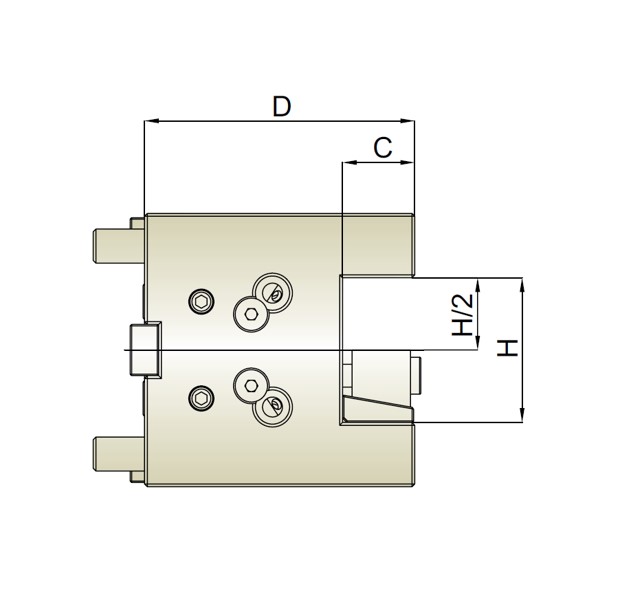

THL-DLN-B1-4520
A:58
B:58
C:20
D:65
E:75
F:87
H:40
H/2:20
N.W.(KG):2.9
THL-DPM-B1-5520
A:64
B:64
C:20
D:90
E:90
F:100
H:40
H/2:20
N.W.(KG):5.5
THL-DPM-B1-5525
A:64
B:64
C:25
D:90
E:90
F:100
H:50
H/2:25
N.W.(KG):5.3
THL-DPM-B1-6520
A:73
B:70
C:20
D:95
E:96
F:105
H:40
H/2:20
N.W.(KG):6.7
THL-DPM-B1-6525
A:73
B:70
C:25
D:95
E:96
F:105
H:50
H/2:25
N.W.(KG):6.5
THL-DPM-B1-7525
A:90
B:90
C:25
D:135
E:112
F:120
H:50
H/2:25
N.W.(KG):12.9
THL-DPM-B1-8532
A:100
B:100
C:32
D:142
E:125
F:125
H:64
H/2:32
N.W.(KG):15.3
