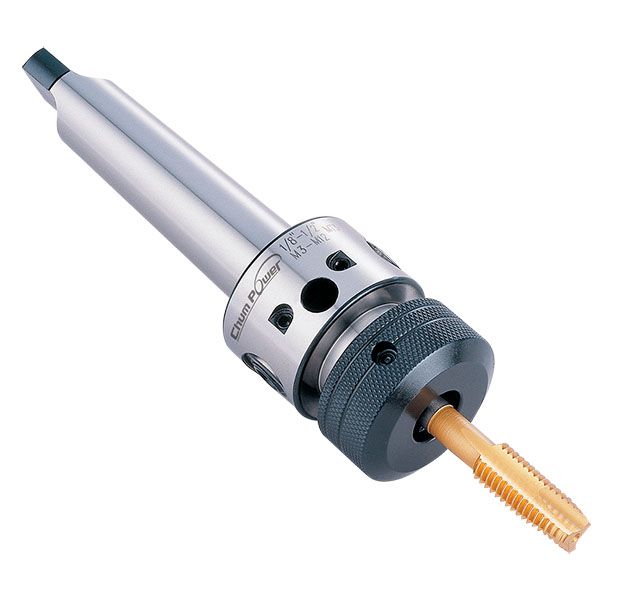

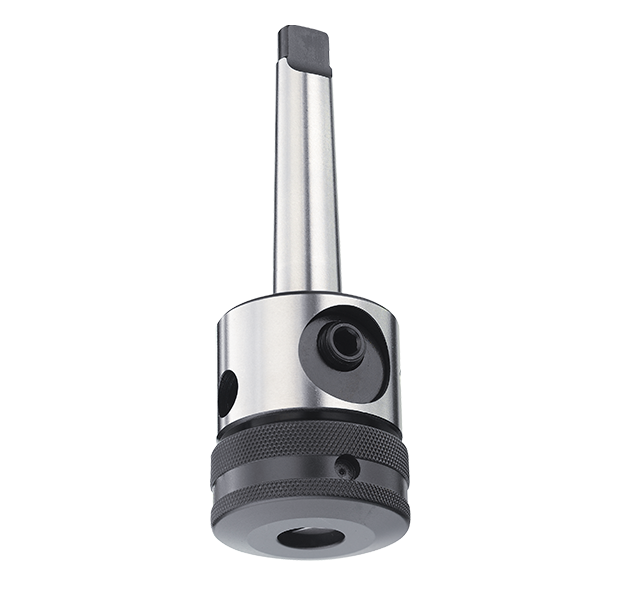

Universal Tap Chuck - Morse Taper Shank Type
The products are suitable for CNC Machining Centers, CNC Turning Centers, High-Speed Center Lathes, Drilling Machines, Radial Drilling Machines, Air Tapping Machines, Milling Machines and other machines with reversible spindles.
*Custom-Built products are available on request.
*Custom-Built products are available on request.
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA35021M30101A
Size:1/2"Capacity (mm):M3-M12
Capacity (inch):1/8"-1/2"
Taper Mount NO. DIN or Jacobs:MT2
L (mm):129
L1 (mm):49
ØD (mm):43
ØD1 (mm):42.5
Weight (g):
BA35021M40101A
Size:1/2"Capacity (mm):M3-M12
Capacity (inch):1/8"-1/2"
Taper Mount NO. DIN or Jacobs:MT3
L (mm):148
L1 (mm):49
ØD (mm):43
ØD1 (mm):42.5
Weight (g):
BA35085M30101A
Size:5/8"Capacity (mm):M3-M16
Capacity (inch):1/8"-5/8"
Taper Mount NO. DIN or Jacobs:MT2
L (mm):136
L1 (mm):60
ØD (mm):49
ØD1 (mm):46
Weight (g):732
BA35085M40101A
Size:5/8"Capacity (mm):M3-M16
Capacity (inch):1/8"-5/8"
Taper Mount NO. DIN or Jacobs:MT3
L (mm):156
L1 (mm):60
ØD (mm):49
ØD1 (mm):46
Weight (g):
BA35043M30101A
Size:3/4"Capacity (mm):M9-M18
Capacity (inch):3/8"-3/4"
Taper Mount NO. DIN or Jacobs:MT2
L (mm):143.5
L1 (mm):64
ØD (mm):50
ØD1 (mm):49
Weight (g):924
BA35043M40101A
Size:3/4"Capacity (mm):M9-M18
Capacity (inch):3/8"-3/4"
Taper Mount NO. DIN or Jacobs:MT3
L (mm):162.5
L1 (mm):64
ØD (mm):50
ØD1 (mm):49
Weight (g):1074
BA35043M50101A
Size:3/4"Capacity (mm):M9-M18
Capacity (inch):3/8"-3/4"
Taper Mount NO. DIN or Jacobs:MT4
L (mm):187.5
L1 (mm):64
ØD (mm):50
ØD1 (mm):49
Weight (g):1380
