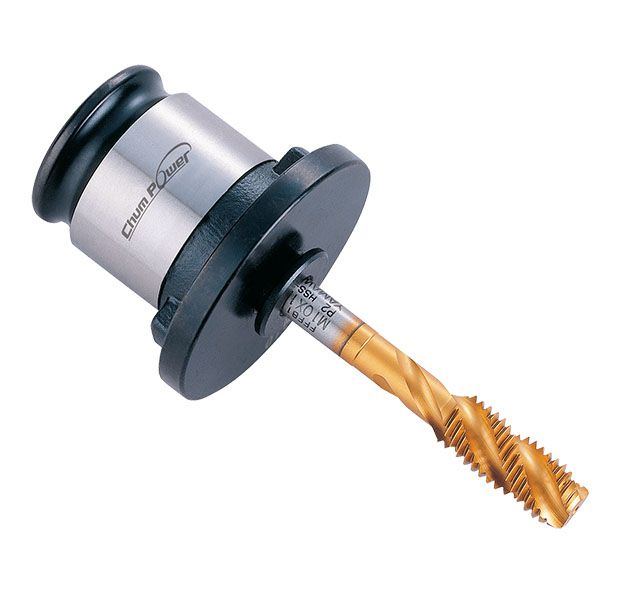

Quick Change Tap Collet - Rigid Type: ISO-529/2283 Series

ISO-529-2283 Tap Collet

Quick Change Tap Collet - Rigid Type: ISO-529/2283 Series

*Custom-Built products are available on request.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA354S2030101A
TC312B ISO529/2283 Tap:M3
Tap Shank ØD:2.24
Tap Shank □:1.8
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2040101A
TC312B ISO529/2283 Tap:M3.5
Tap Shank ØD:2.5
Tap Shank □:2.0
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2040102A
TC312B ISO529/2283 Tap:M4
Tap Shank ØD:3.15
Tap Shank □:2.5
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2050102A
TC312B ISO529/2283 Tap:M4.5
Tap Shank ØD:3.55
Tap Shank □:2.8
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2050101A
TC312B ISO529/2283 Tap:M5
Tap Shank ØD:4.0
Tap Shank □:3.15
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2060101A
TC312B ISO529/2283 Tap:M6
Tap Shank ØD:4.5
Tap Shank □:3.55
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2070101A
TC312B ISO529/2283 Tap:M7
Tap Shank ØD:5.6
Tap Shank □:4.5
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2080101A
TC312B ISO529/2283 Tap:M8
Tap Shank ØD:6.3
Tap Shank □:5.0
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2090101A
TC312B ISO529/2283 Tap:M9
Tap Shank ØD:7.1
Tap Shank □:5.6
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2100101A
TC312B ISO529/2283 Tap:M10
Tap Shank ØD:8.0
Tap Shank □:6.3
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2120101A
TC312B ISO529/2283 Tap:M12
Tap Shank ØD:9.0
Tap Shank □:7.1
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA354S2140101A
TC312B ISO529/2283 Tap:M14
Tap Shank ØD:11.2
Tap Shank □:9.0
Capacity:M3~M14
L1 (mm):22
L2 (mm):7
ØD1 (mm):19
ØD2 (mm):30
BA355S2080101A
TC820B ISO529/2283 Tap:M8
Tap Shank ØD:6.3
Tap Shank □:5.0
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2090101A
TC820B ISO529/2283 Tap:M9
Tap Shank ØD:7.1
Tap Shank □:5.6
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2100101A
TC820B ISO529/2283 Tap:M10
Tap Shank ØD:8.0
Tap Shank □:6.3
Capacity:M8~M24
L1 (mm):36
L2 (mm):30.5
ØD1 (mm):31
ØD2 (mm):50
BA355S2120101A
TC820B ISO529/2283 Tap:M12
Tap Shank ØD:9.0
Tap Shank □:7.1
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2140101A
TC820B ISO529/2283 Tap:M14
Tap Shank ØD:11.2
Tap Shank □:9.0
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2160101A
TC820B ISO529/2283 Tap:M16
Tap Shank ØD:12.5
Tap Shank □:10.0
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2180101A
TC820B ISO529/2283 Tap:M18
Tap Shank ØD:14.0
Tap Shank □:11.2
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2200101A
TC820B ISO529/2283 Tap:M20
Tap Shank ØD:14.0
Tap Shank □:11.2
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2220101A
TC820B ISO529/2283 Tap:M22
Tap Shank ØD:16.0
Tap Shank □:12.5
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA355S2240101A
TC820B ISO529/2283 Tap:M24
Tap Shank ØD:18.0
Tap Shank □:14.0
Capacity:M8~M24
L1 (mm):36
L2 (mm):11
ØD1 (mm):31
ØD2 (mm):48
BA356S2140101A
TC1433B ISO529/2283 Tap:M14
Tap Shank ØD:11.2
Tap Shank □:9.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2160101A
TC1433B ISO529/2283 Tap:M16
Tap Shank ØD:12.5
Tap Shank □:10.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2180101A
TC1433B ISO529/2283 Tap:M18
Tap Shank ØD:14.0
Tap Shank □:11.2
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2200101A
TC1433B ISO529/2283 Tap:M20
Tap Shank ØD:14.0
Tap Shank □:11.2
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2180102A
TC1433B ISO529/2283 Tap:M22
Tap Shank ØD:16.0
Tap Shank □:12.5
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2240101A
TC1433B ISO529/2283 Tap:M24
Tap Shank ØD:18.0
Tap Shank □:14.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2270101A
TC1433B ISO529/2283 Tap:M27
Tap Shank ØD:20.0
Tap Shank □:16.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2300101A
TC1433B ISO529/2283 Tap:M30
Tap Shank ØD:20.0
Tap Shank □:16.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2330101A
TC1433B ISO529/2283 Tap:M33
Tap Shank ØD:22.4
Tap Shank □:18.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
BA356S2360101A
TC1433B ISO529/2283 Tap:M36
Tap Shank ØD:25.0
Tap Shank □:20.0
Capacity:M14~M36
L1 (mm):56
L2 (mm):14
ØD1 (mm):48
ØD2 (mm):70
