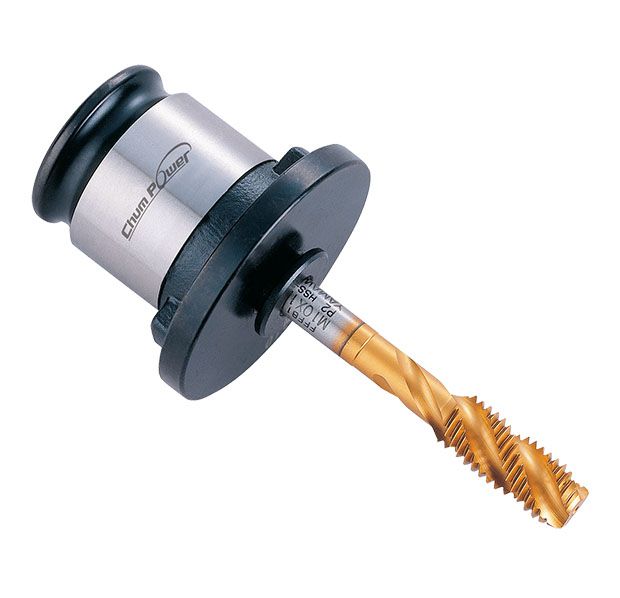

Quick Change Tap Collet - Rigid Type: ISO-529 Series

ISO-529 Tap Collet

Quick Change Tap Collet - Rigid Type: ISO-529 Series

*Custom-Built products are available on request.

Product Apps

Required number

SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA352S5030101A
TC312 ISO 529
Tap: M3
Tap Shank ØD: 3.15
Tap Shank □: 2.5
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5040101A
TC312 ISO 529
Tap: M3.5
Tap Shank ØD: 3.55
Tap Shank □: 2.8
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5040102A
TC312 ISO 529
Tap: M4
Tap Shank ØD: 4.0
Tap Shank □: 3.15
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5050101A
TC312 ISO 529
Tap: M4.5
Tap Shank ØD: 4.5
Tap Shank □: 3.55
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5050102A
TC312 ISO 529
Tap: M5
Tap Shank ØD: 5.0
Tap Shank □: 4.0
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5060101A
TC312 ISO 529
Tap: M6
Tap Shank ØD: 6.3
Tap Shank □: 5.0
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5070101A
TC312 ISO 529
Tap: M7
Tap Shank ØD: 7.1
Tap Shank □: 5.6
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5080101A
TC312 ISO 529
Tap: M8
Tap Shank ØD: 8.0
Tap Shank □: 6.3
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5090101A
TC312 ISO 529
Tap: M9
Tap Shank ØD: 9.0
Tap Shank □: 7.1
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5100101A
TC312 ISO 529
Tap: M10
Tap Shank ØD: 10.0
Tap Shank □: 8.0
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5090101A
TC312 ISO 529
Tap: M9
Tap Shank ØD: 9.0
Tap Shank □: 7.1
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA352S5100101A
TC312 ISO 529
Tap: M10
Tap Shank ØD: 10.0
Tap Shank □: 8.0
Capacity: M3~M14
L1 (mm): 22
L2 (mm): 25
ØD1 (mm): 19
ØD2 (mm): 32
BA351S5060101A
TC820 ISO 529
Tap: M6
Tap Shank ØD: 6.3
Tap Shank □: 5.0
Capacity: M8~M24
L1 (mm): 36
L2 (mm): 30.5
ØD1 (mm): 31
ØD2 (mm): 50
BA351S5070101A
TC820 ISO 529
Tap: M7
Tap Shank ØD: 7.1
Tap Shank □: 5.6
Capacity: M8~M24
L1 (mm): 36
L2 (mm): 30.5
ØD1 (mm): 31
ØD2 (mm): 50
BA351S5080101A
TC820 ISO 529
Tap: M8
Tap Shank ØD: 8.0
Tap Shank □: 6.3
Capacity: M8~M24
L1 (mm): 36
L2 (mm): 30.5
ØD1 (mm): 31
ØD2 (mm): 50
BA351S5090101A
TC820 ISO 529
Tap: M9
Tap Shank ØD: 9.0
Tap Shank □: 7.1
Capacity: M8~M24
L1 (mm): 36
L2 (mm): 30.5
ØD1 (mm): 31
ØD2 (mm): 50
BA351S5100101A
TC820 ISO 529
Tap: M10
Tap Shank ØD: 10.0
Tap Shank □: 8.0
Capacity: M8~M24
L1 (mm): 36
L2 (mm): 30.5
ØD1 (mm): 31
ØD2 (mm): 50
