#125 Drill Chuck

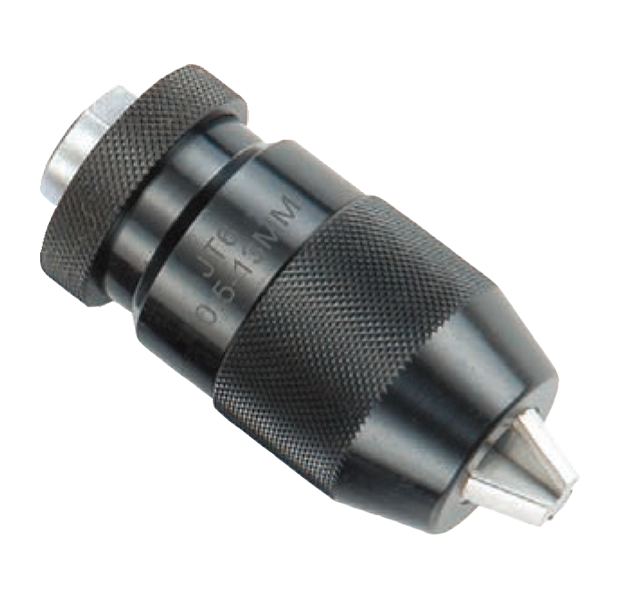

Drill Chuck - Keyless Thread Mount: Medium Duty Model
Stable quality of threaded mounting, suitable for bench and pedestal CNC drilling machines.
SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA12513101103A
Size:13M
Capacity:
1-13mm
1/32-1/2inch
Taper Mount No.:1/2-20UNF
Length:
Open87
Closed99
Outer Dia(mm):43
Weight(g):650
BA12513101101A
Size:13M
Capacity:
1-13mm
1/32-1/2inch
Taper Mount No.:3/8-24UNF
Length:
Open87
Closed99
Outer Dia(mm):43
Weight(g):650
