Product Drill Chuck Titanium Jaws Chuck Series Titanium Collet - Keyless Taper Mount: Special Heavy Duty ModelTitanium Collet - Keyless Taper Mount: Special Heavy Duty Model
#122 Titanium Collet

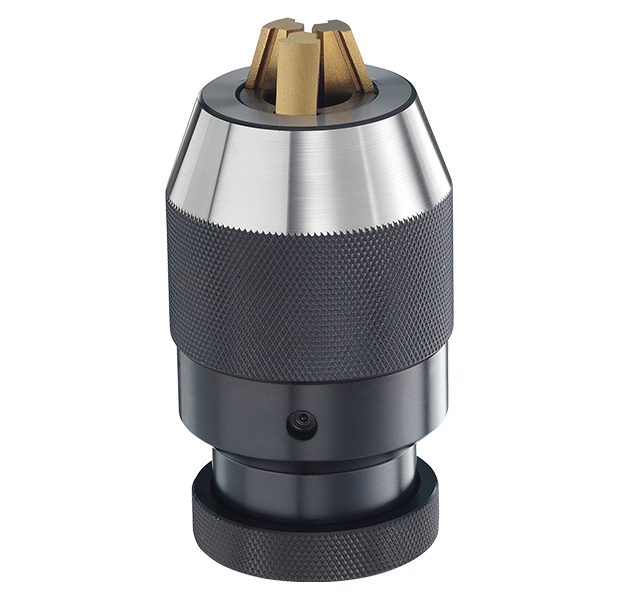

Titanium Collet - Keyless Taper Mount: Special Heavy Duty Model
Extremely high accuracy and precision design of chuck, suitable for CNC machines and machine center.
All parts are ground, heat treated, surface treated and under specific QC condition.
The clamping three jaws adopt high tech Titanium.
The benefit of adopting Titanium is to increase the intensity and wear-resistance.
*Custom-Built products are available on request.SPECIFICATIONS
(Please contact the sales about the latest specification of products)
BA12206201101A
Size: 6SCapacity mm: 0.3-6.5
Capacity inch: 1/64-1/4
Male Taper No. DIN or Jacobs: JT1

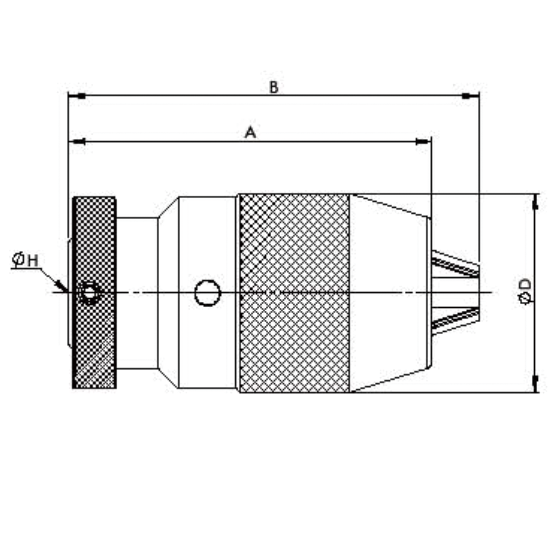

Length (mm) Open: 62
Length (mm) Closed: 68
Outer Dia (mm): 33
Weight (g): 300
BA12206203303A
Size: 6S
Capacity mm: 0.3-6.5
Capacity inch: 1/64-1/4
Male Taper No. DIN or Jacobs: B10
Length (mm) Open: 62
Length (mm) Closed: 68
Outer Dia (mm): 33
Weight (g): 300
BA12208201101A
Size: 8S
Capacity mm: 0.3-8
Capacity inch: 1/64-5/16
Male Taper No. DIN or Jacobs: JT1
Length (mm) Open: 70
Length (mm) Closed: 77
Outer Dia (mm): 38
Weight (g): 425
BA12208201102A
Size: 8S
Capacity mm: 0.3-8
Capacity inch: 1/64-5/16
Male Taper No. DIN or Jacobs: JT2S
Length (mm) Open: 70
Length (mm) Closed: 77
Outer Dia (mm): 38
Weight (g): 425
BA12208201103A
Size: 8S
Capacity mm: 0.3-8
Capacity inch: 1/64-5/16
Male Taper No. DIN or Jacobs: B10
Length (mm) Open: 70
Length (mm) Closed: 77
Outer Dia (mm): 38
Weight (g): 425
BA12208201104A
Size: 8S
Capacity mm: 0.3-8
Capacity inch: 1/64-5/16
Male Taper No. DIN or Jacobs: B12
Length (mm) Open: 70
Length (mm) Closed: 77
Outer Dia (mm): 38
Weight (g): 425
BA12210201102A
Size: 10S
Capacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: JT2S
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 625
BA12210201103A
Size: 10S
Capacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: JT33
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 625
BA12210201104A
Size: 10S
Capacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: B10
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 626
BA12210201105A
Size: 10S
Capacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: B12
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 627
BA12210201101A
Size: 10SCapacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: JT2
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 628
BA12210201106A
Size: 10S
Capacity mm: 0.3-10
Capacity inch: 1/64-3/8
Male Taper No. DIN or Jacobs: B16
Length (mm) Open: 80
Length (mm) Closed: 91
Outer Dia (mm): 43
Weight (g): 629
BA12213201101A
Size: 13S
Capacity mm: 0.3-13
Capacity inch: 1/64-1/2
Male Taper No. DIN or Jacobs: JT2
Length (mm) Open: 90
Length (mm) Closed: 102
Outer Dia (mm): 50
Weight (g): 1000
BA12213201102A
Size: 13S
Capacity mm: 0.3-13
Capacity inch: 1/64-1/2
Male Taper No. DIN or Jacobs: JT3S
Length (mm) Open: 90
Length (mm) Closed: 102
Outer Dia. (mm): 50
Weight (g): 1000
BA12213201103A
Size: 13S
Capacity mm: 0.3-13
Capacity inch: 1/64-1/2
Male Taper No. DIN or Jacobs: JT6
Length (mm) Open: 90
Length (mm) Closed: 102
Outer Dia (mm): 50
Weight (g): 1000
BA12213201104A
Size: 13S
Capacity mm: 0.3-13
Capacity inch: 1/64-1/2
Male Taper No. DIN or Jacobs: B12
Length (mm) Open: 90
Length (mm) Closed: 102
Outer Dia (mm): 50
Weight (g): 1000
BA12213201105A
Size: 13S
Capacity mm: 0.3-13
Capacity inch: 1/64-1/2
Male Taper No. DIN or Jacobs: B16
Length (mm) Open: 90 Length (mm) Closed: 102
Outer Dia (mm): 50
Weight (g): 1000
BA12216201102A
Size: 16SCapacity mm: 3-16
Capacity inch: 1/8-5/8
Male Taper No. DIN or Jacobs: JT6
Length (mm) Open: 102
Length (mm) Closed: 114
Outer Dia (mm): 57
Weight (g): 1320
BA12216201101A
Size: 16S
Capacity mm: 3-16
Capacity inch: 1/8-5/8
Male Taper No. DIN or Jacobs: JT3
Length (mm) Open: 102
Length (mm) Closed: 114
Outer Dia (mm): 57
Weight (g): 1320
BA12216201103A
Size: 16S
Capacity mm: 3-16
Capacity inch: 1/8-5/8
Male Taper No. DIN or Jacobs: B16
Length (mm) Open: 102
Length (mm) Closed: 114
Outer Dia (mm): 57
Weight (g): 1320
BA12216201104A
Size: 16S
Capacity mm: 3-16
Capacity inch: 1/8-5/8
Male Taper No. DIN or Jacobs: B18
Length (mm) Open: 102
Length (mm) Closed: 114
Outer Dia (mm): 57
Weight (g): 1320
BA12216201105A
Size: 16S
Capacity mm: 3-16
Capacity inch: 1/8-5/8
Male Taper No. DIN or Jacobs: JT33
Length (mm) Open: 102
Length (mm) Closed: 114
Outer Dia (mm): 57
Weight (g): 1320
BA12220201101A
Size: 20S
Capacity mm: 5-20
Capacity inch: 13/54-51/64
Male Taper No. DIN or Jacobs: JT3
Length (mm) Open: 112
Length (mm) Closed: 122
Outer Dia (mm): 60
Weight (g): 1685
BA12220201102A
Size: 20S
Capacity mm: 5-20
Capacity inch: 13/54-51/64
Male Taper No. DIN or Jacobs: B18
Length (mm) Open: 112
Length (mm) Closed: 122
Outer Dia (mm): 60
Weight (g): 1685
